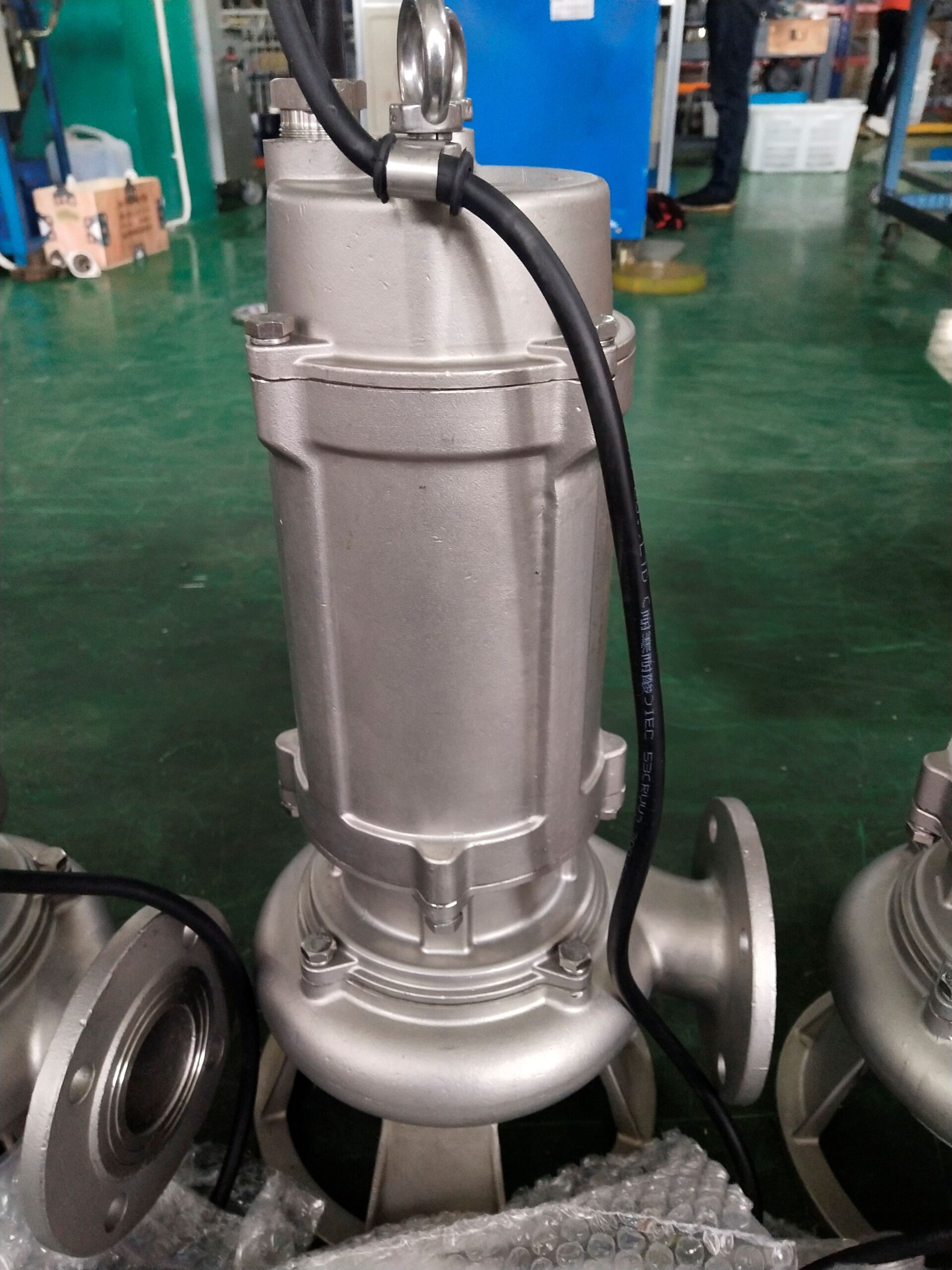

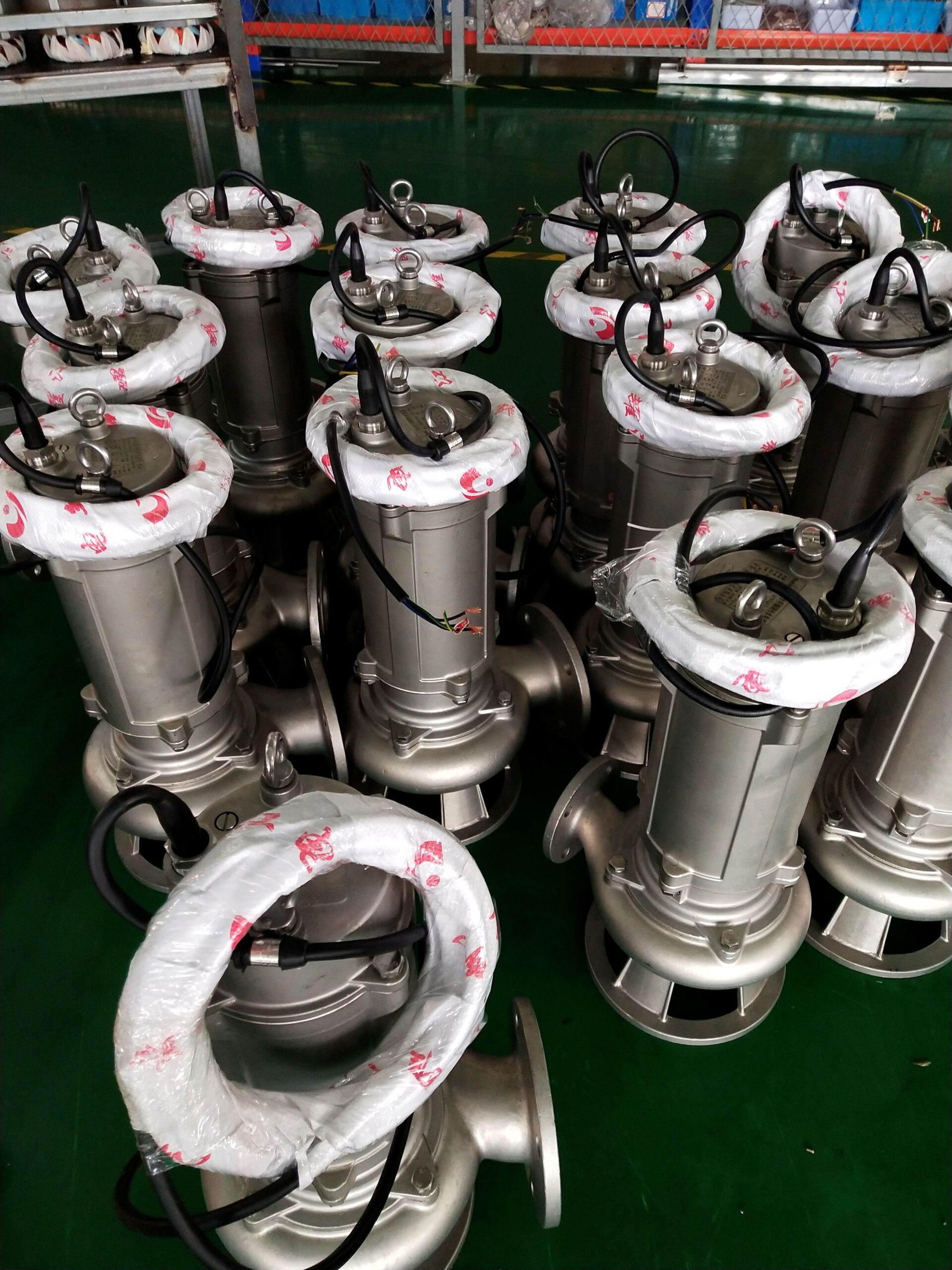

Stainless Steel Flood Drainage Pump
Product Features
- Full 304 / 316 stainless steel construction – corrosion-resistant and durable for continuous submersion.
- Heat resistance up to 110°C, suitable for diverse industrial and climate conditions.
- High-efficiency motor and impeller design, delivering 20 m head and steady flow.
- Optional automatic level control system for fully unattended drainage operation.
- Supports duty + standby configuration to ensure continuous operation during outages or failures.
Technical Data
- Power: 2.2 kW
- Voltage: 220 / 380 V
- Flow Rate: 15 m³/h
- Head: 20 m
- Material: 304 / 316 Stainless Steel
- Temperature: ≤110°C
- Installation: Submersible Vertical
Applications
- Sump systems for FM flood doors and barriers
- Basements, MEP rooms, and tunnel drainage
- Semiconductor and chemical storage seepage control
- Emergency drainage and flood protection systems
Standards & Certification
- Manufactured in accordance with FM Global DS 1-40 / DS 2-8 flood protection guidelines
- Designed for integration with FM-certified flood doors, barriers, and emergency power systems
Core Value
- Ensures operational continuity during seepage, flooding, or stormwater events
- A vital component of FM-certified life safety flood protection systems
